CBZ50A

Home » Popping Boba & Konjac Ball Production Line » Semi-automatic & Small Automatic Popping Boba Machine » CBZ50A
SINOFUDE’s CBZ50A automatic popping boba production line series are especially designed for small capacity popping boba manufacturer. Its capacity can achieve 50kgs/h. By changing some small advice, like jacket hopper and cutting wires, this machine can make 2 products: popping boba and crystal boba(konjac boba). It’s very cost-effective. And the size of the boba can also be adjusted by changing the nozzles.

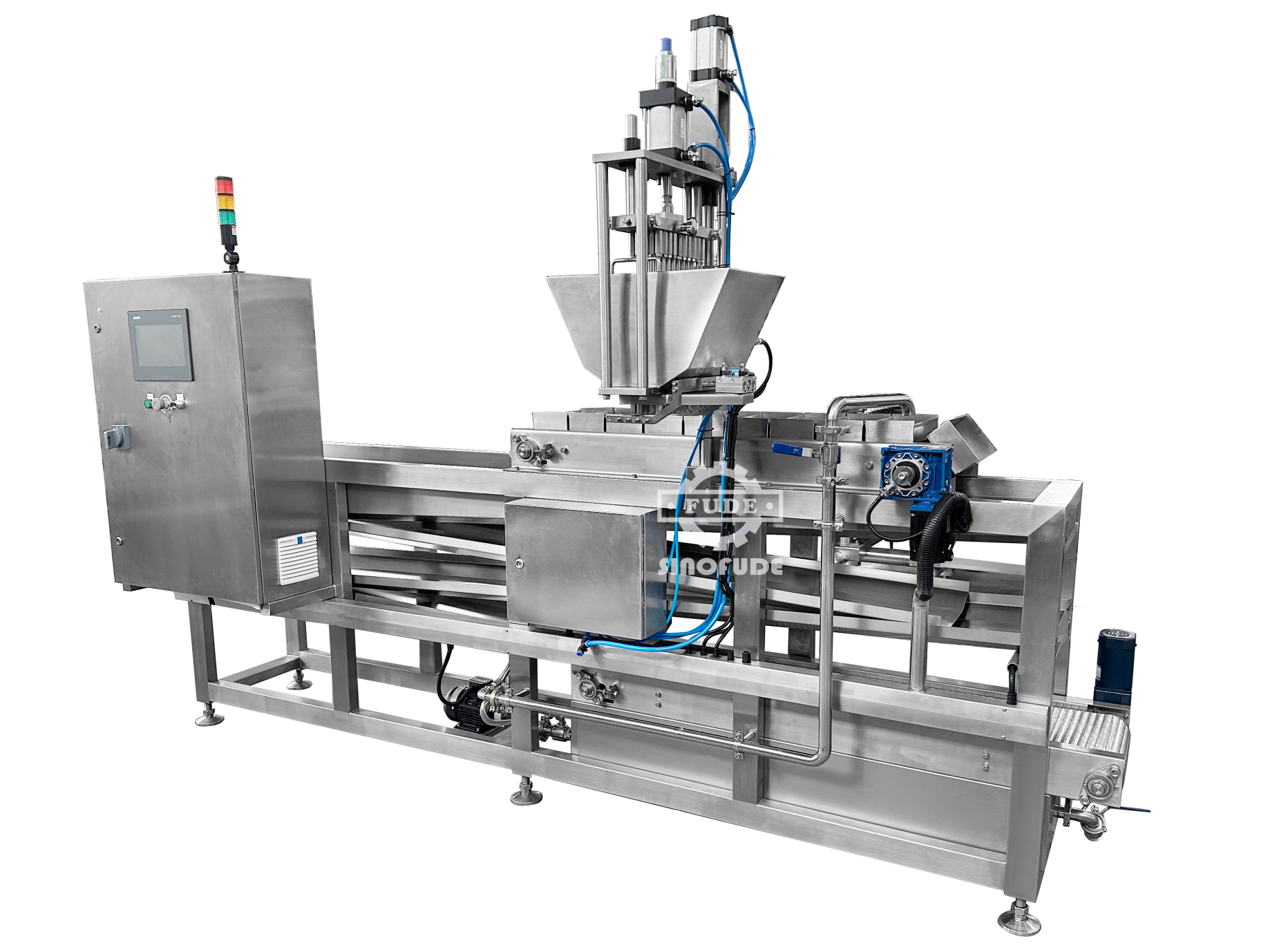

cbz50a-machine

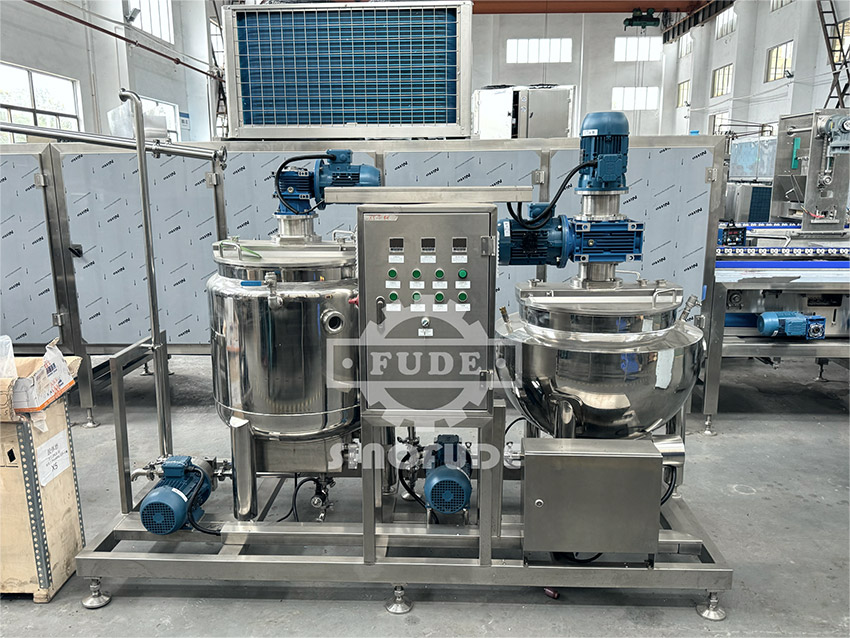

cbz50a-02

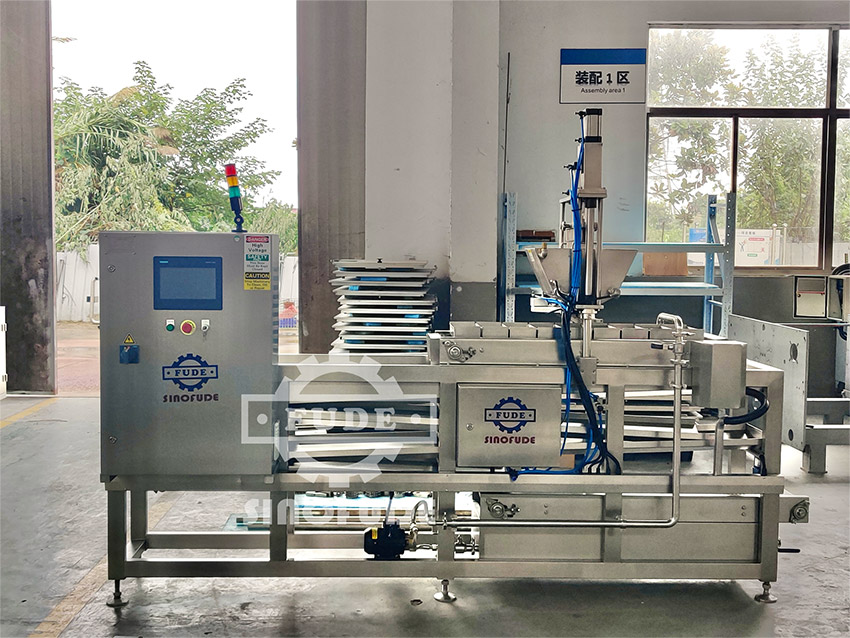

cbz50a-01
The two types of products the machine can produce:

Specifications

Model Capacity Electric power needed Number of nozzles Dimension Boba Size
CBZ50A 50kg/h 61kw (Electric heating)
30kw (Steam heating)		 30 pcs 6500mm*3500mm*1800mm 5-12mm

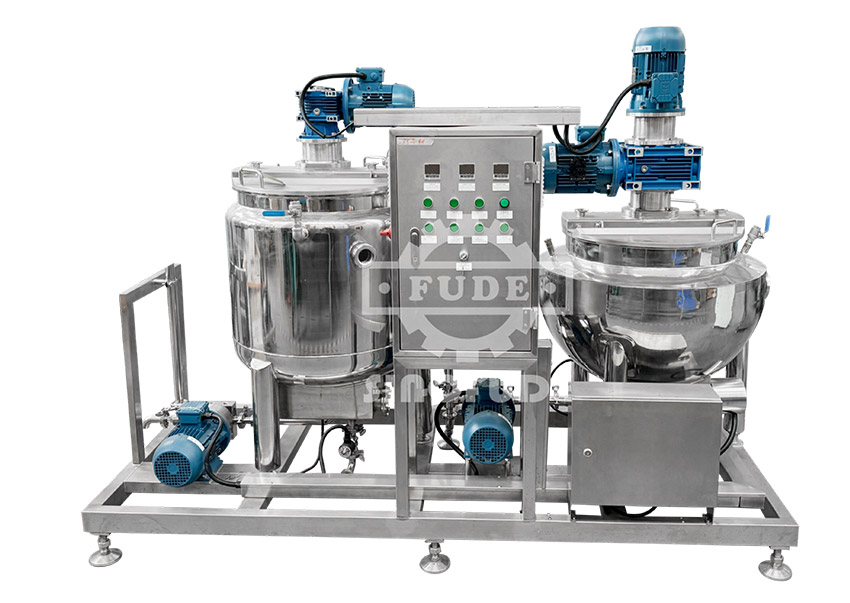

Cooking system

The raw material processing part of the CBZ50A production line. Sodium alginate solution, syrup, etc. are cooked here. It consists of 2 cookers, 2 storage tanks and transfer pumps. It can be equipped with a high-speed shearing machine and 3-layers insulation jacket cooking.

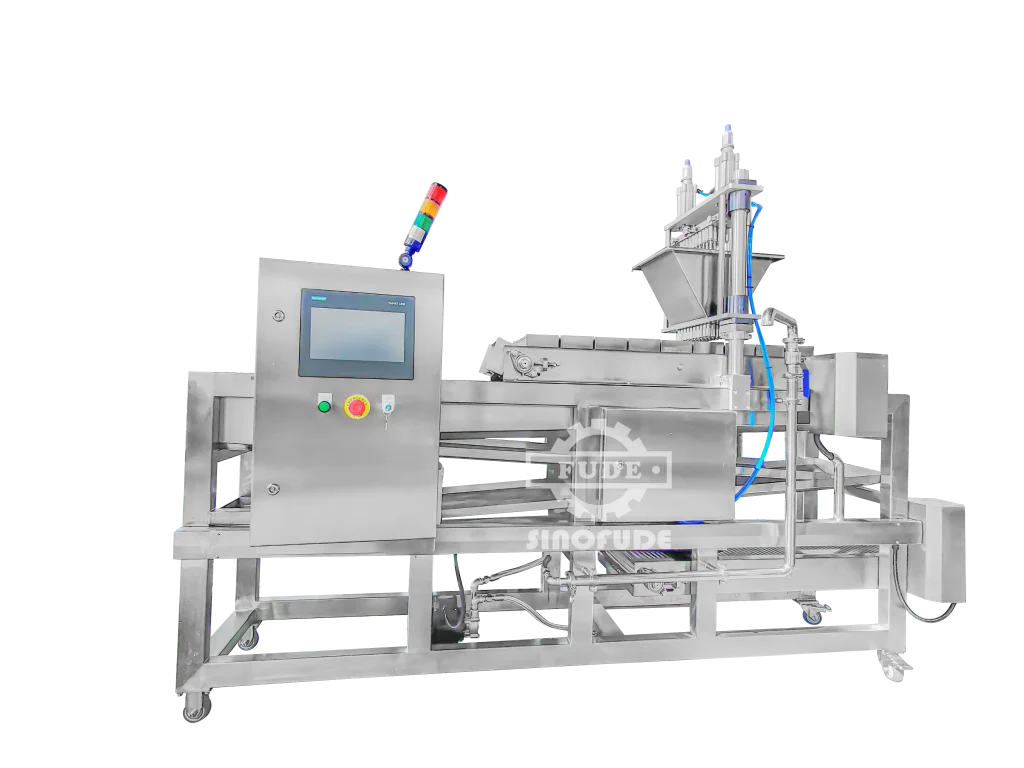

Depositing system

The equipment was exclusively developed and produced by Shanghai Fude Machinery and was put into production in March 2022. This equipment takes into account the advantages of full automation and small footprint, and is suitable for customers with small capacity requirements but high requirements for full automation.

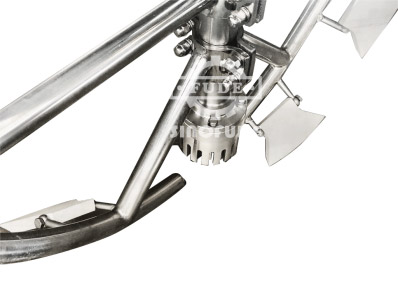

Scrape and stir

PTFE hanging side mixing to ensure food safety. Round tube design, no welds, no sanitary dead corners. Center high-speed shearing, 100% cutting of macromolecular substances.

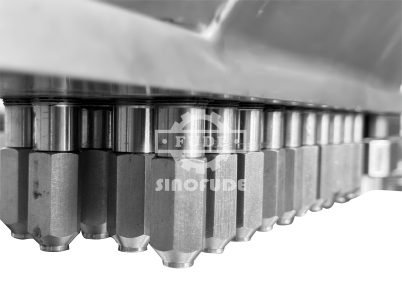

Nozzles

0 error nozzle, precise depositing. Replaceable nozzles to support different sizes. Wire cutting is optional and can produce Crystal boba, Konjac boba.

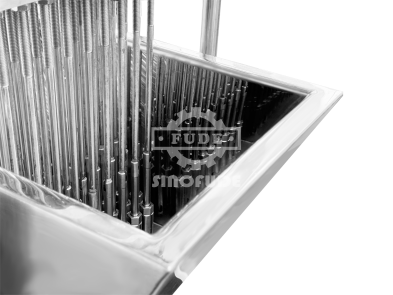

Hopper

No welds inside the hopper and no sanitary dead corners. Optional thermal insulation sandwich hopper. Optional liquid level meter to automatically monitor raw material liquid level.
