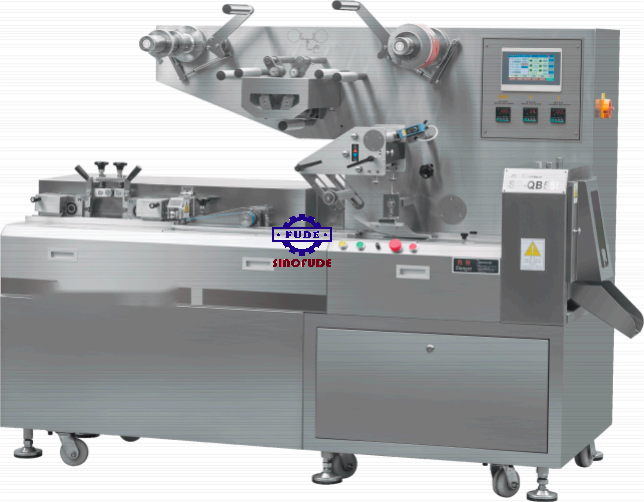

CP-QB550
Product Application
It is suitable for cutting and packaging bubble gum, milk sugar, nougat, hawthorn cake and walnut cake.
Specifications
| CP-QB550 | Parameter |
|---|---|
| Packaging speed | 100 - 550 bags/minute |
| packaging film range | Maximum diameter 390mm Maximum width 250mm |
| package specification | Length 20 - 1 1 omm Width 1 2 - 25mm Height 3 - 1 8mm |
| packaging shape | Square, rectangular, cylindrical |
| Motor power | 5.2kw |
| Machine dimensions | 2244mm * 900mm * 1 600mm |
| Machine weight | 960kg |
| Machine power supply | 220V 50hz |
| Film | oPP,CPP, It is recommended to use PET aluminized film, aluminum-plastic film, paper-plastic and other single-layer and multi-layer heat-sealable materials. The outer layer PET thickness is 0.01 3mm and the inner layer CPP thickness is 0.023-0.027mm composite low-temperature film. |
Optional Devices
- code printer
- Brand new PTFE Sheet (viscous material)
- outlet conveyor
- package cutting and hanging punching device
Features
- Machine shell : all stainless steel wire drawing plate
- Equipped with a new 5 – servo and PLC Operating system , it is high-speed , high-precision and has strong anti – interference ability
- The shaped strip materials are connected to the machine for shaping , cutting and packing without empty package , which is high speed and high efficiency.
