CP-XPL660/ZDP350

Home » Full Automatic Feeding And Packing Line » CP-XPL660/ZDP350

This series vertical round bottle labeling machine is the ideal equipment for round bottle labeling in pharmaceutical, food, daily chemical and other light industry. It can be used for full circle labeling and half circle labeling.

The machine has advanced functions, simple operation and compact structure. Photoelectric detection, PLC control, touch software operation, conveyor belt, bottle wheel, bottle belt are stepless speed regulation and has the advantages of standard accurate, high precision; At the same time, it has the functions of no labeling, no labeling automatic alarm and so on.

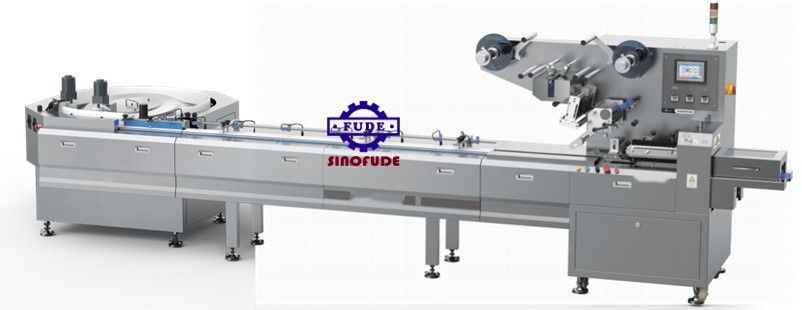

cp-xpl660-zdp350
Vibrating Disk
Product Application
It is suitable for single and multi -grain packaging: rectangular, oblate , semicircular and other materials , candy cubes , leisure food and other regular materials

Specifications

CP-XPL660/ZDP350 Parameter
packaging speed 100 - 660 bags/minute
packaging film range Maximum diameter 390mm Maximum width 200mm
package specification Length 20 - 1 50mm, Width 1 0 - 60mm, Thickness 5 - 30mm
Motor power 7KW
Machine dimensions 5300mm * 1 403mm * 1 600mm
Machine weight 1550kg
Machine power supply 380V 50Hz
film oPP, CPP, PET aluminized film, aluminum-plastic film, paper-plastic and other single-layer and multi-layer films can be heat-sealed or cold-sealed. It is recommended to use outer PET thickness 0.01 3mm and inner CPP thickness 0.023-0. 027mm composite low temperature film

Optional Devices

  1. Automatic hopper
  2. New PTFE Sheet (viscous material)
  3. outlet conveyor
  4. cut off the package and hang the drilling device
  5. can be connected to vibrating disc blanking device

Features

  • Machine shell : all stainless steel wire drawing plate
  • Equipped with a new 1 0 servo (bus servo) PLC Operating system , it has high speed , high accuracy, strong anti – interference expansion ability and can be connected to the MESTIntel system
  • The inclined plate material handling and intelligent conveying and feeding system make the material not easy to damage the surface layer during the packaging process , and there is no empty bag
  • The material handling mode can be connected to the vibrating disk , which can be switched flexibly according to the material properties , specifications and dimensions
